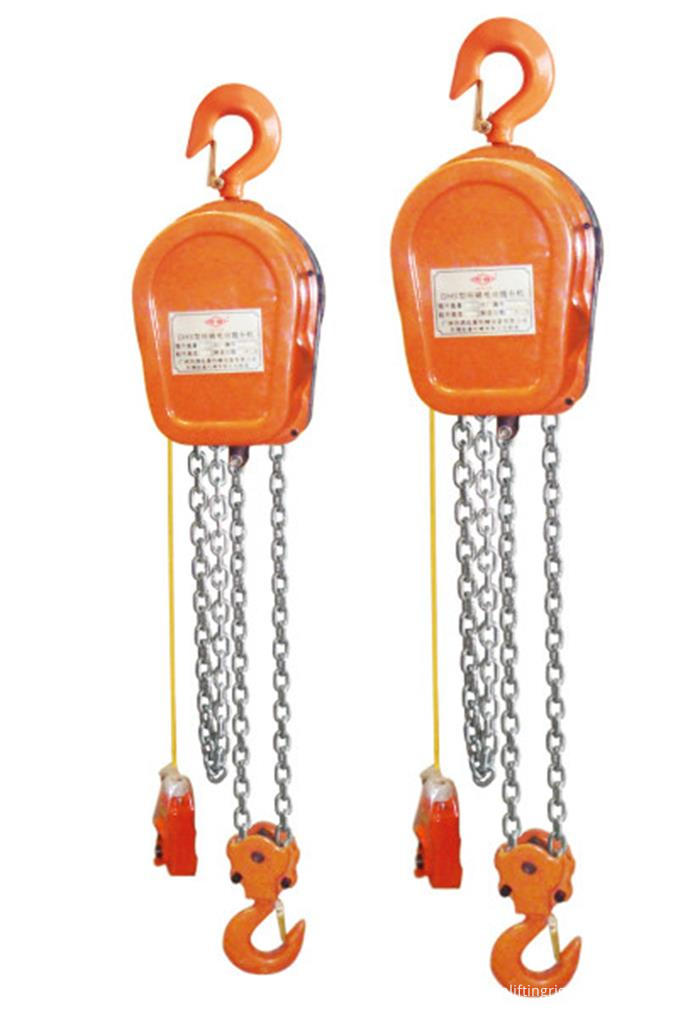

DHS series electric endless Electric Chain Hoist:
It is improve the disadvantage of manual operation and low speed and also easy to carry as the chain block.
It has the advantage of compact structure, small volume, light weight, high efficiency, easy to use and guard.
It is suitable for low-speed distant, loading and unloading, materials, facilitating equipment, mineral and project erection.
The products are with good quality and low price, safe and reliable.
Advantage:
Fine steel shell , effectively protect the internal components from impact , prolonging the service life of the product .
HOOK & PUSH BUTTON.
Stainless steel hook ,after heat treatment has enough toughness and strength overload not broken ,can only slowly deformation ,more secure .
Extended hand line handle ,convenient and safe operation ,engineering plastic ,break resistance ,water-proof, long service life .
LIFTING CHAIN.
G80 level lifting chain ,high safety coefficient ,strong tension ,to ensure that the goods smoothly supply .
MOTOR.
Disc brake motor ,brake fast ,stable performancce ,long service life
GEAR BOX.
Gear box: in the gear box, all gears, gear ring are alloy structural steel, produced by the heat produced by Seiko. Running low noise, smooth operation, increase life expectancy.
Model
DHS-1
DHS-2
DHS-3
DHS-5
DHS-10
DHS-20
Rated Load
1T
2T
3T
5T
10T
20T
Test Load
1.5T
3T
4.5T
6.25T
12.5T
25T
Motor Model
YHPE500W
YHPE500W
YHPE500W
YHPE750W
YHPE750W
YHPE750W
Power Supply
380V / 50HZ
Lifting speed
2.5M/Min
2M/Min
1.25M/Min
1M/Min
0.5m/min
0.45m/min
Loading Chains
1PCS
2PCS
2PCS
2PCS
4PCS
8PCS
Weight (3M)
36KG
45 KG
42 KG
57 KG
115 KG
195 KG
Weight (6M)
40 KG
52 KG
50 KG
70 KG
142 KG
235 KG

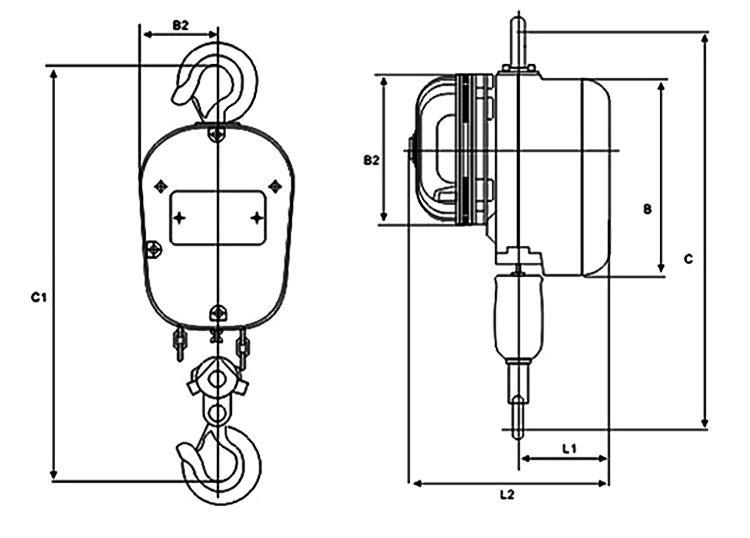

Dimension (CM)
50*32*28
50*32*30
52*32*30
60*32*32
50*50*43
72*72*85
Produce show:
Our Services
1.Client
We treasure and try to understand all the different needs of our clients and seek to forge a long term professional relationship with them. The satisfaction of each and every customer is our main goal and motivation in conducting our business.
2. People
We work as a team and treat each other with respect. Our solid, capable and knowledgeable team is valued as the greatest asset and an integral part of the business.
3. Product
Our products are of HIGH quality standards and always come with certificate of compliance by the manufacturers.
4. Performance
We aim to achieve high level of performance and satisfaction to both our client and people, which include delivering high quality services and treating people with integrity.
5. Free sample and OEM service
We can provide free samples to you and we also have OEM service, we can put your logo on the label and the information you need on the webbing too.
DHS Electric Chain Hoist,Electric Chain Fall Hoist,Electric Chain Hoist With Trolley,5Ton Electric Chain Hoist Hebei Liston Lifting Rigging Manufacturing Co., Ltd. , http://www.liftingriggingfactory.com
Mode
MB105BM
Max.Planing Width
500mm
Planing Thickness
3-180mm
Min.Planing length
250mm
Max.cuttingdepth
4mm
Feed Speed
6/8m/min
Tool spindle Speed
6500r/min
Motor Power
5.5kw
Dimension
760*930*1270mm
Weight
500kg
Certification
FAQ
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Panel Saw, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, CE certificate
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao sea port
How to contact us
Â
Woodworking Machine Wood Thickness Planer
Model NO.: MB105BM
Cutter Shaft: 3
Certification: CE, ISO
Feed Speed: 6/8m/Min
Trademark: HZH
Transport Package: Plastic Film
Specification: 760*930*1270mm
Origin: Qingdao
HS Code: 84659600
Thickness Planer
